Focus on sawing technology application for16 years, Kinkalteck PTF series Flycut cold saw is designed under the concept of how to achieve the right production efficiency under a controlled operating cost. PTF has few application patents which allow customers to achieve high speed mill production, high quality cutting and low cost output per tonnage.
PTF equipped with various option and mature operation software allow it works under demanding needs; high precision tube mill, high tensile strength material, commercial tube making, furniture tube making…

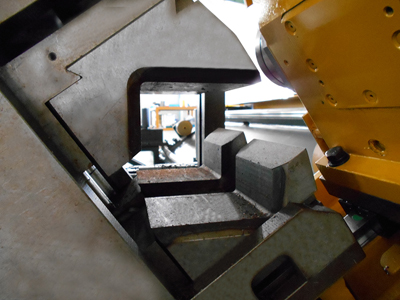

Flycut cold saw product descriptions:
1. High precision gear, with no backlash design; able to achieve high RPM and delivery high torque as required during inner scarf cut off application
2. Smart geometry design which gives max blade usage. OD 315mm blade can cut through an OD 76mm tube, compare what our competitors doing with an OD 400mm blade!
3. Simplicity compact carriage design, using Aerospace grade Aluminum alloy as carriage base frame, highly weight reduction; benefits less mechanic wear out, less energy consumption.
4. Carriage moving by belt can achieve mill speed 170m/min operation with no distortion and high cutting length tolerance +/- 2mm
5. Name branded components: Siemens Motion control, Siemens Servo motor and drive, Schneider components etc. We meets standard components global supply requirement.
6. Mature software: Cutting manager, production control, problem diagnostic, remote control maintenance, cell phone App, MES ready, Industry 4.0 ready
| PTF series | PTF-32 | PTF-50 | PTF-60 | PTF-76 | PTF-114 | PTF-165 | PTF-230 | |
| Material Grade | Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
Mild steel, Alloy Steel, Stainless Steel, High tensile strength Steel |
|
| Max. Tensile Strength | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | |
| Product data | ||||||||
| Dimensions | Round | Φ10-51 | Φ13-64 | Φ19-76 | Φ25-127 | Φ32-140 | Φ76-165 | Φ76-230 |
| Square | 40*40 | 50*50 | 60*60 | 100*100 | 110*110 | 130*130* | 180*180 | |
| Wall thickness (mm) | [mm] | 0.5-3.0 | 0.8-3.5 | 1.0-4.0 | 1.5-4.5 | 1.5-5.0 | 1.5-6.0 | 2.5-8.0 |
| Equipment data | ||||||||
| Max mill speed | m/min | 140 | 140 | 120 | 80 | 75 | 60 | 60 |
| Motor (kw) | Carriage | 11 | 11 | 11 | 15 | 15 | 15 | 57.5 |
| Saw feed | 1.0 | 1.0 | 1.0 | 1.7 | 1.7 | 1.7 | 1.7 | |
| Sawing motor | 7.5 | 11 | 11 | 11 | 15 | 15 | 11 | |
| Blade Diameter | mm | 275-315 | 275-315 | 275-350 | 350-450 | 350-500 | 350-550 | 350-600 |
| Sawing accuracy | 【6 meters】 | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm |
