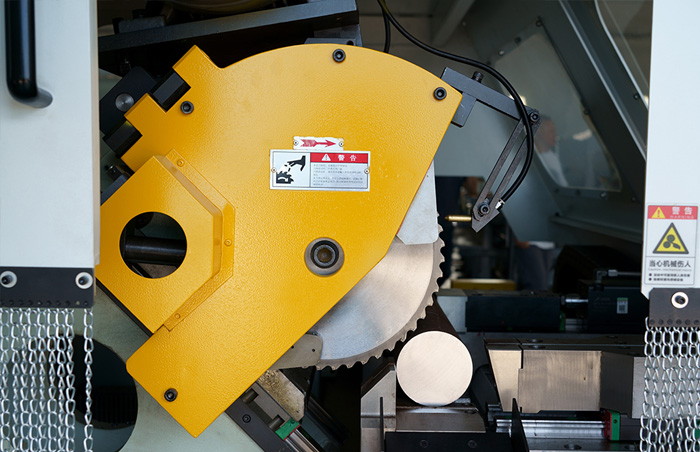

Kinkalteck X9 high speed precision circular saw

Powerful high speed solid cutting. Output 10 sec/piece for OD Φ100mm solid.

1. Suitable for high tensile steel cutting up to 1300N/mm2

2. Output: 360pcs/hour Φ100mm Solid L:100mm

3. Optional 3rd Axis for short end piece: >20mm

Product description Video Display

Product description

1. Italy Design gear, facilitates high speed cutting and high torque output, with no backlash

2. Robust saw frame, with casted slider and clamping set; minimized cutting vibration

3. Smart geometry design allows max blade usage; Blade size Φ315*2 can cut through Φ100mm solid bar; Smallest blade in the industry. Try to compare our competitors who use Φ360 *2.6mm to do the same job

4. Smart blade care design facilitates high speed cutting

5. High power sawing motor 18kW giving high speed cutting and high torque cutting

6. Effective stroke length: 800mm

7. Column type 45°saw feeding method

8. Saw feed and material feed mode: Servo motor with ball screw drive

9. MQL mist spray for saw blade lubricant

10. Optional cell phone app monitoring machine operation

11. Sawing process cutting parameters and machine performance Data collection, data analysis, cutting manager software, advanced MES application and Industy 4.0 ready are optional

Video Display

X9 cutting solid OD 104
